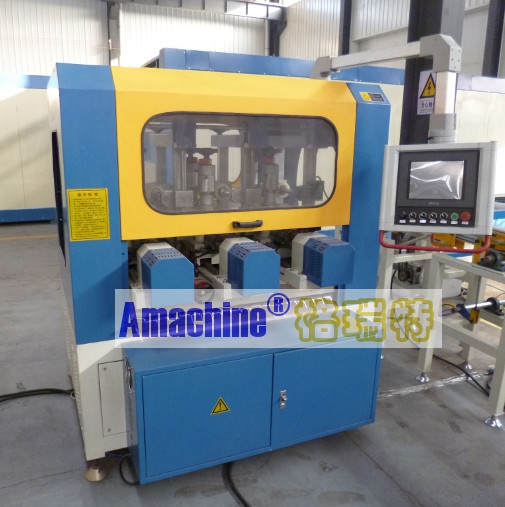

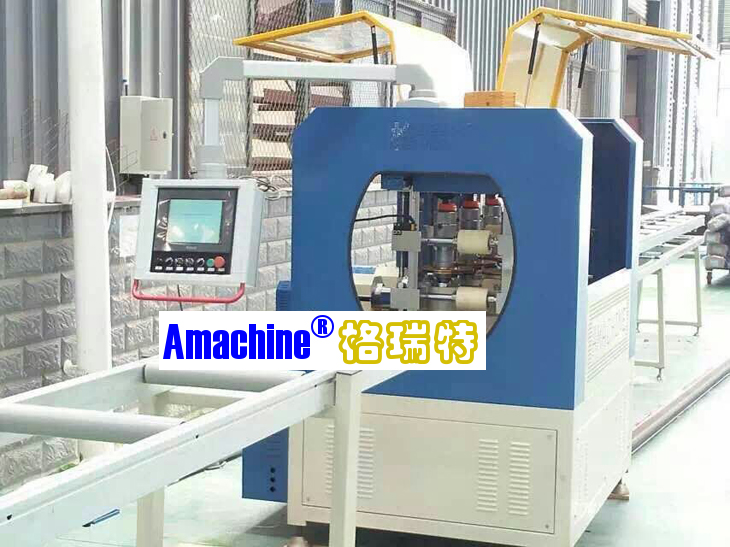

GYJ-CNC-01 Five-axis CNC Rolling Machine
Applications:

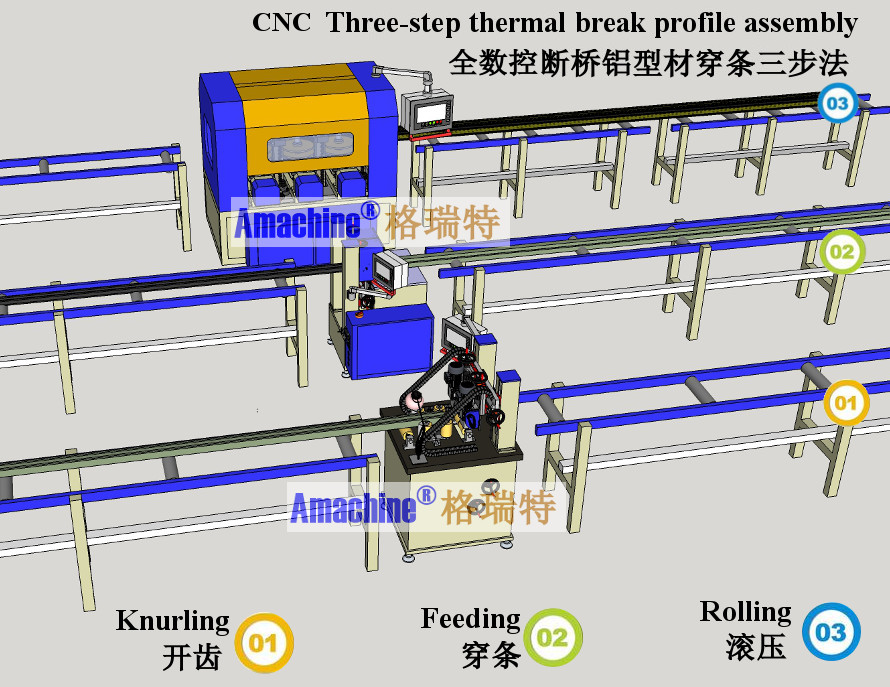

This five-axis CNC rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make the thermal break aluminum profile. Since five axes is CNC controlled, the operation has become very easy.
Features:
1, Five-axis CNC system.Omron PLC, precision screw, Taiwan HIWIN linear rail, ABB inverter, Schneider electrical appliance are adopted.
2, Equipped with HMI LCD touching display screen.The software developed by ourselves makes it possible to store data of all types of aluminum profiles for future use.
3, Six sets of rolling discs controlled by separate driving force guarantee stable rolling, high speed, and high efficiency. Step-less speed regulation.
Technical data:
|
Model |
GYJ-CNC-01 |
|
Power supply |
380V/50Hz |
|
Total power |
5.5Kw |
|
Five-axis CNC control |
Rolling discs and upper rollers |
|
Rolling disc diameter |
240mm |
|
Rolling disc height regulating range |
0-80mm |
|
Max rolled section |
130x230mm (WxH) |
|
Working speed |
0-60m/min |
|
Overall dimension |
1550x1050x1550mm |
|
Weight |
2000kg |
